Model:

CS-H9c-R100-8H33WKFL

Image Sensor:

1/2.7" Progressive Scan CMOS

Shutter Speed:

Self-adaptive shutter

Lens:

2.8mm @ F1.6 (Upper) / 6mm @ F1.6 (Bottom)

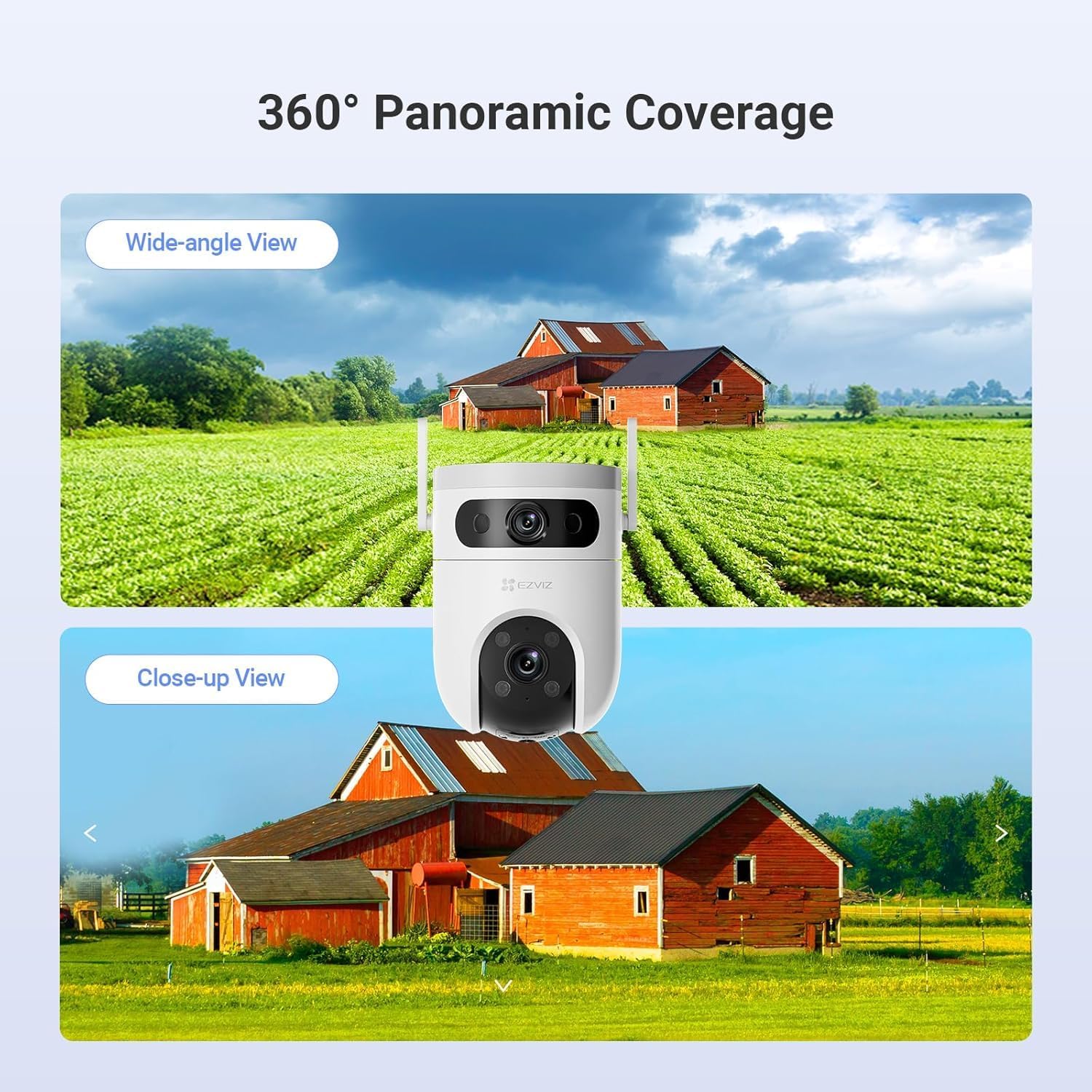

View Angle:

130°/108°/56° (Upper), 62°/55°/28° (Bottom)

PT Angle:

Pan 350°, Tilt 80°

Minimum Illumination:

0.5 Lux @(F1.6, AGC ON), 0 Lux with IR

Lens Mount:

M12

Day & Night:

IR-cut filter with auto-switching

DNR:

3D DNR

WDR:

Digital WDR

Night Vision Distance:

Up to 30m

Max Resolution:

2304 × 1296

Frame Rate:

Up to 15 fps

Video Compression:

H.265 / H.264

H.265 Type:

Main Profile

Video Bit Rate:

Adaptive

Audio Bit Rate:

Self-Adaptive

Smart Alarm:

AI Human Detection, AI Vehicle Detection, Motion Detection

Auto Tracking:

Supported

Customized Alert Area:

Supported

Two-way Talk:

Supported

Preset Locations:

Supported

General Functions:

Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

WiFi Standard:

IEEE 802.11b/g/n

Frequency Range:

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth:

20 MHz

Transmission Rate:

Up to 150 Mbps

WiFi Pairing:

AP pairing

Protocol:

EZVIZ Cloud Proprietary Protocol

Security:

WPA-PSK/WPA2-PSK

Wired Network:

RJ45 10/100M Ethernet

Local Storage:

microSD up to 512GB

Cloud Storage:

EZVIZ CloudPlay

Power Supply:

DC 12V / 1.5A

Power Consumption:

Max 12W

Operating Temperature:

-30°C to 50°C

Weatherproof:

Yes

Dimensions:

145 × 116 × 142 mm

Weight:

668g

Camera:

1x H9c

Power Adapter:

1x

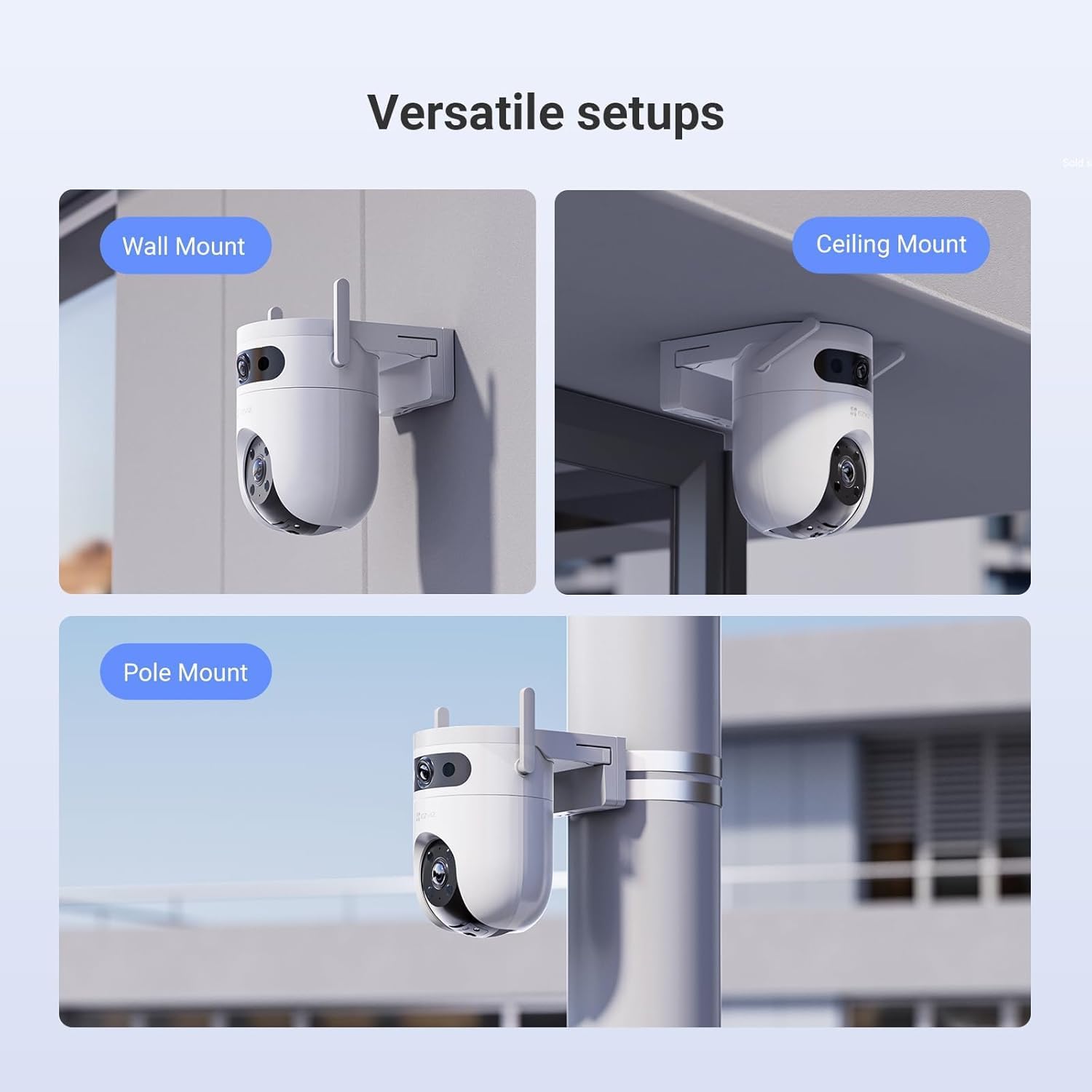

Mounting Kit:

Screw Kit, Drill Template, Waterproof Kit

Documents:

Quick Start Guide, Regulatory Info

Standards:

CE, WEEE, RoHS, REACH
