SKU: CS-TY1 3MP w1
SKU: CS-TY1 3MP w1
Captures vivid colors in the night time
Up to your choice, the TY1 Pro can use a built-in spotlight to render color night vision even in the pitch darkness. Its black-and-white night vision also serves well to keep you well informed.
Smart Color Night Vision (Up to 5 m)
IR Night Vision (Up to 10 m) Captures vivid colors in the night time
Up to your choice, the TY1 Pro can use a built-in spotlight to render color night vision even in the pitch darkness. Its black-and-white night vision also serves well to keep you well informed.
Smart Color Night Vision (Up to 5 m)IR Night Vision (Up to 10 m)Model:
CS-TY1-R105-1L3WF
Image Sensor:
1/2.7" Progressive Scan CMOS
Shutter Speed:
Self-adaptive shutter
Lens:
4mm @ F1.6
View Angle:
98° (Diagonal), 82° (Horizontal), 48° (Vertical)
Lens Mount:
M12
Day & Night:
IR-cut filter with auto switch
DNR:
3D DNR
WDR:
Digital WDR
IR Range:
Up to 10m
Video Compression:
H.264 / H.265
Video Bit Rate:
Adaptive
Max Resolution:
2304 × 1296
Frame Rate:
Self-Adaptive
Smart Alarm:
Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode
WiFi Pairing:
AP pairing
Protocol:
EZVIZ Cloud Proprietary Protocol
Storage:
microSD up to 512GB

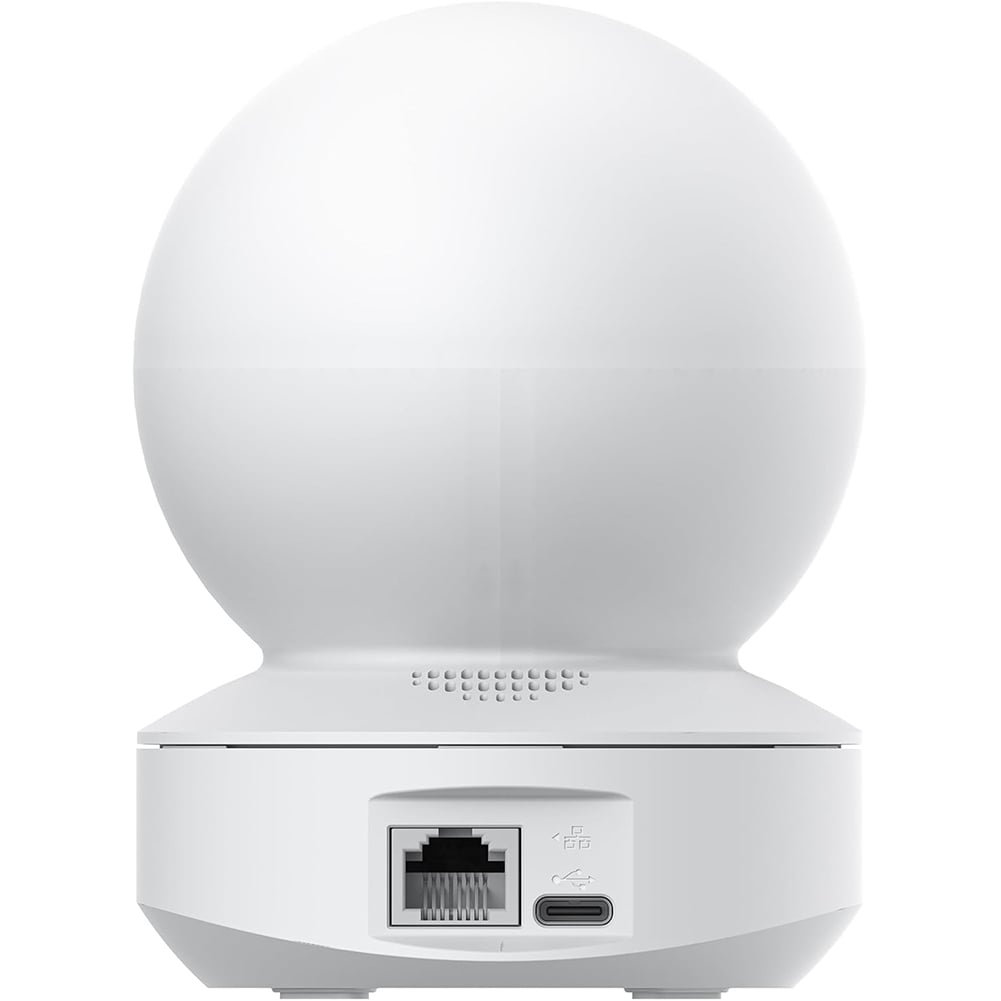

Wired Network:
RJ45 10/100M Ethernet
Standard:
IEEE 802.11b/g/n
Frequency Range:
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth:
20 MHz
Security:
WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate:
Up to 72 Mbps
Output Power:
19 dBm
Antenna Gain:
1.9 dBi
Power Supply:
DC 5V / 1A
Power Consumption:
Max 5W
Interface:
Type-C
Operating Temperature:
-10°C to 45°C
Dimensions:
88 × 88.2 × 119 mm
Weight:
218g
Camera:
1x
Power Adapter:
1x
Power Cable:
1x
Mounting Kit:
Mounting Plate, Screw Kit, Drill Template
Documents:
Quick Start Guide, Regulatory Info
Standards:
CE, UL, WEEE, REACH, RoHS
