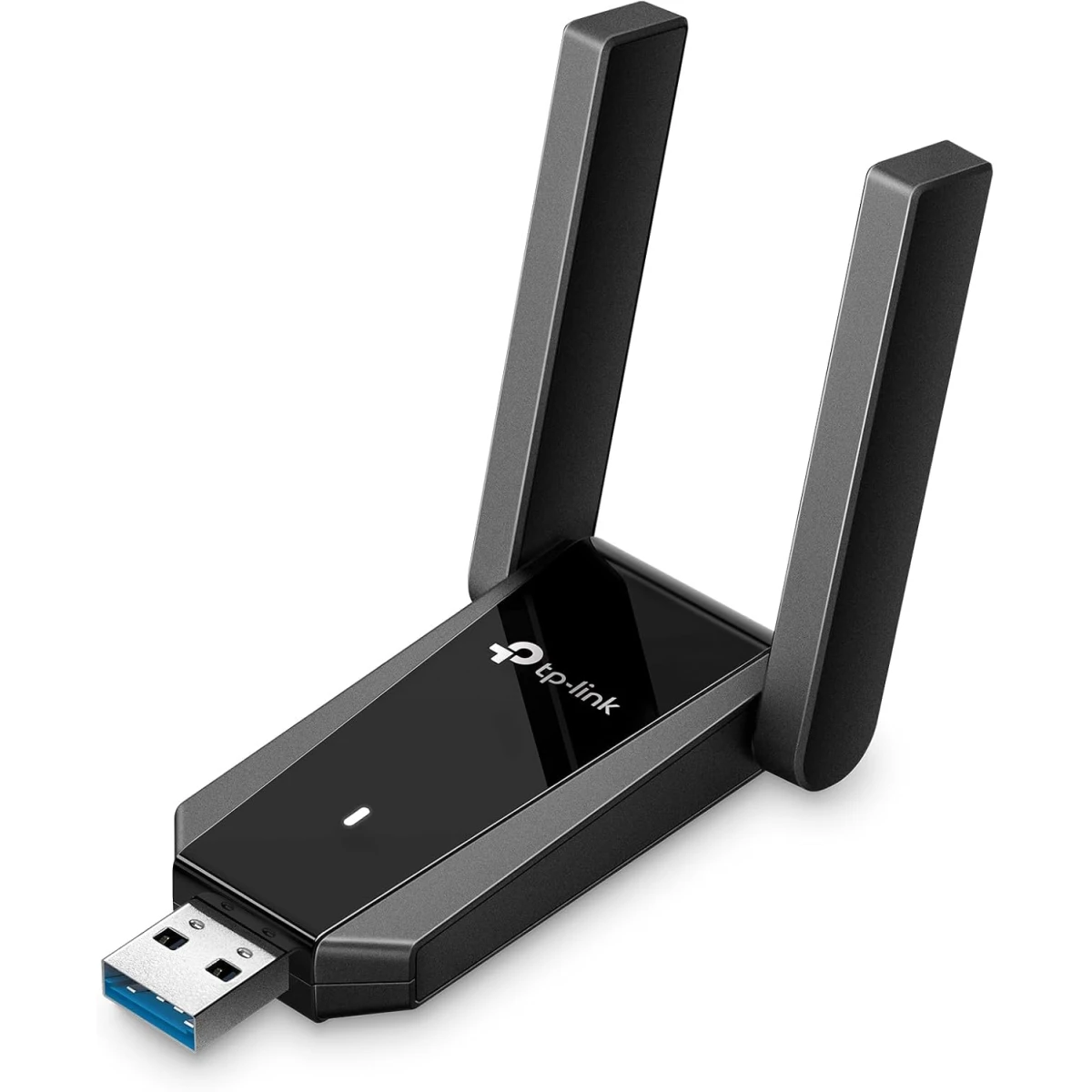

The TP-Link Archer TX30U Plus is an AX1800 dual-band Wi-Fi 6 USB adapter designed to add high-speed wireless network connectivity to compatible Windows desktop and laptop computers. Supporting theoretical wireless rates of up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, it provides a flexible wireless connection for browsing, streaming, downloads, and online activities.
Equipped with two adjustable high-gain dual-band antennas, beamforming technology, and a USB 3.0 connection, the adapter is designed for reliable wireless reception and convenient placement. OFDMA, MU-MIMO, WPA3 security, and a preloaded driver add practical connectivity, efficiency, and installation benefits.
Key Features
- AX1800 Dual-Band Wi-Fi 6: Supports theoretical wireless rates of up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Dual High-Gain Antennas: Two adjustable external antennas and beamforming help improve wireless reception and signal stability.

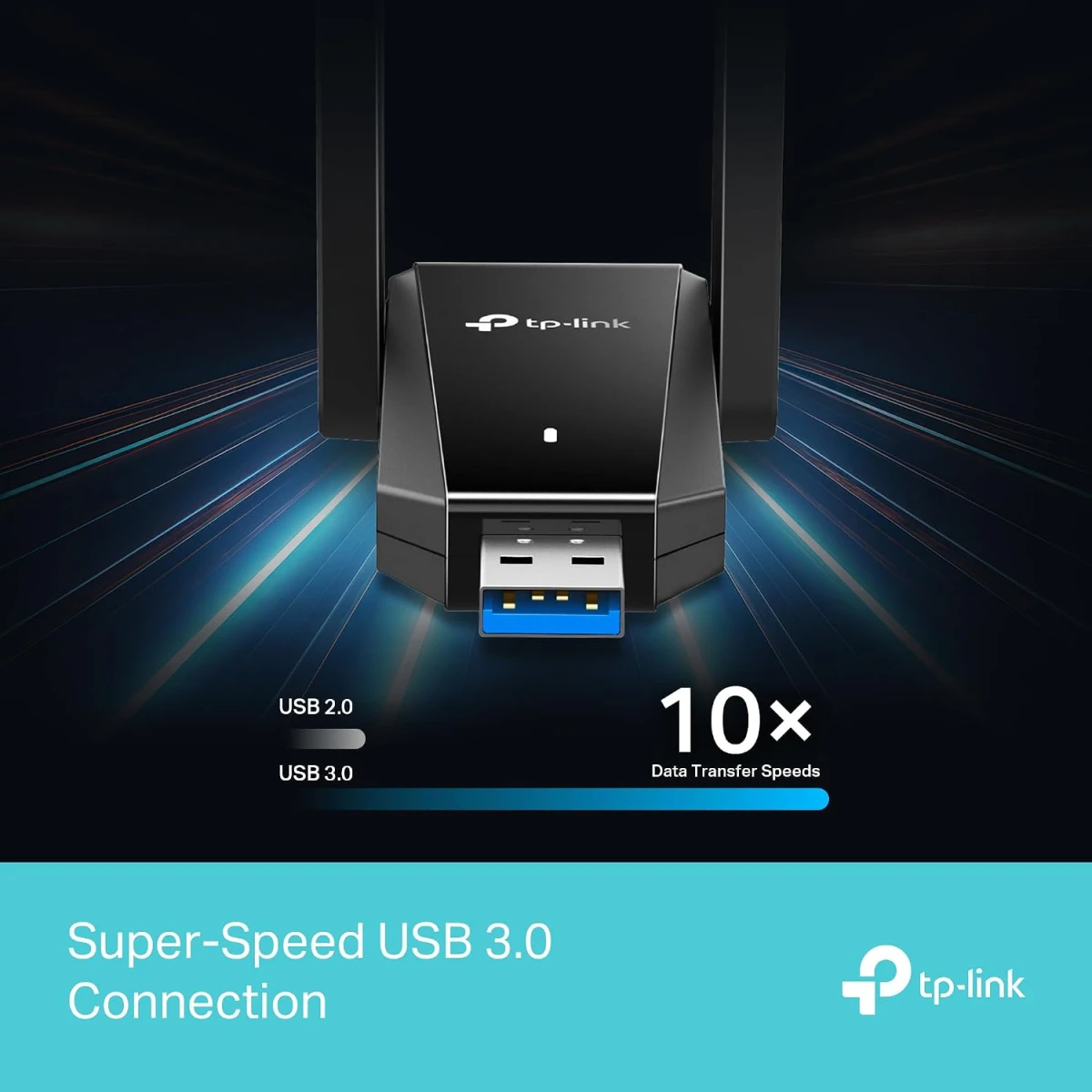

- USB 3.0 Connectivity: Provides a high-speed computer connection for the wireless adapter.
- OFDMA and MU-MIMO: Improve wireless efficiency when used with compatible Wi-Fi networking equipment.
- WPA3 Security: Supports modern wireless encryption when connected to a compatible access point.
- Convenient Installation: Features a preloaded internal driver and supports Windows 11 and Windows 10.
Technical Specifications
| Component | Specification |
| Brand | TP-Link |
| Model | Archer TX30U Plus |
| Product Type | High-Gain Wireless USB Adapter |
| Wi-Fi Class | AX1800 |
| Wi-Fi Generation | Wi-Fi 6 (802.11ax) |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Wireless Bands | 2.4 GHz and 5 GHz |
| 5 GHz Signal Rate | Up to 1201 Mbps (802.11ax, theoretical) |
| 2.4 GHz Signal Rate | Up to 574 Mbps (802.11ax, theoretical) |
| Computer Interface | USB 3.0 |
| Antennas | 2 × High-Gain Dual-Band Antennas |
| Wireless Technologies | Beamforming, MU-MIMO, OFDMA |
| Wireless Security | WEP, WPA/WPA2/WPA3 (Personal/Enterprise), WPA-PSK/WPA2-PSK |
| Wireless Mode | Infrastructure Mode |
| LED Indicator | Status LED |
| Operating Systems | Windows 11 / Windows 10 |
| Dimensions (W × D × H) | 43 × 13.5 × 78.1 mm |
Compatibility & Important Information
- Operating System Compatibility: Supports Windows 11 and Windows 10. Updated drivers are available through TP-Link's official support website.
- Wi-Fi 6 Features: OFDMA, MU-MIMO, and other Wi-Fi 6 capabilities require compatible wireless networking equipment.
- WPA3 Security: WPA3 connections require a router or access point that also supports WPA3.
- USB Connection: A computer USB connection is required. USB 3.0 performance requires a USB 3.0-capable computer port.
- Wireless Speeds: AX1800 represents the combined maximum theoretical signal rates of the two wireless bands, not a guaranteed internet speed or single-device throughput.
- Network Function: This is a Wi-Fi network adapter for connecting a computer to wireless networks, not a Bluetooth adapter or standalone wireless router.
Package Contents
- 1 × TP-Link Archer TX30U Plus AX1800 Wireless USB Adapter
- 1 × Quick Installation Guide
