Supports Intel Core 12th & 13th Gen Processors

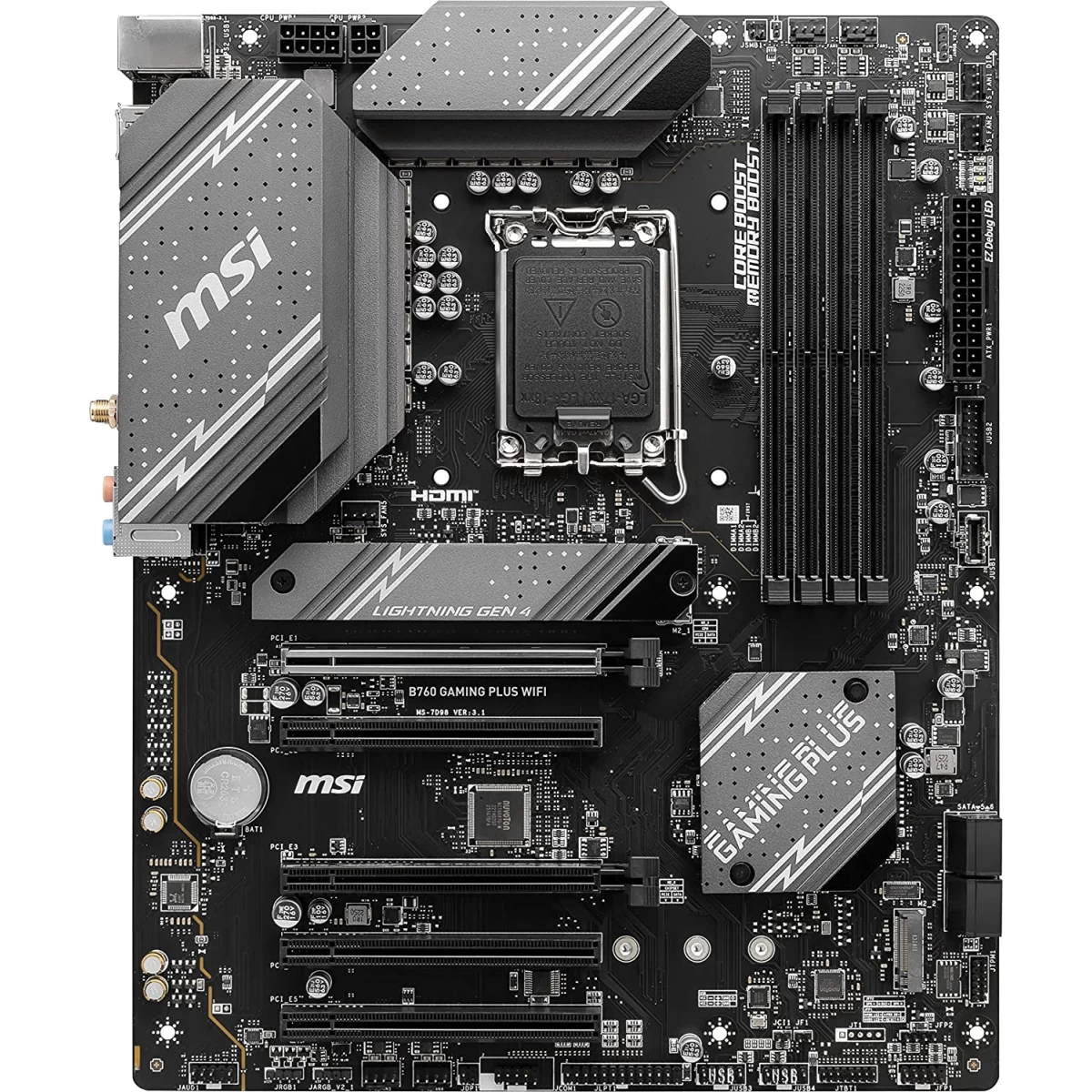

The B760 GAMING PLUS WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.

• Form Factor: ATX
• Socket Type: LGA 1700
• Chipset: Intel B760

12+1 Duet Rail Power System with P-PAK

With its 8 pin + 4 pin power connectors and exclusive Core Boost technology, the B760 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding work settings:

1. Digital PWM IC
2. 12-Phase Duet Rail CPU Power (P-PAK)
3. 1-Phase GT Power
4. 1-Phase AUX Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

4 x DDR5 Dual Channel (6800+ MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6800+ MHz, supports Intel XMP.

2 x Fortified PCI-e 4.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

2 x PCIe 4.0/3.0 x16 slots* (primary slot with Steel Armor)

3 x PCIe 3.0 x1 slots

*Supports x16/x4

Gen4 M.2 Connectors

The B760 GAMING PLUS WIFI motherboard features MSI's Gen4 M.2 slots:

2 x Gen4 x4 64Gbps slots*

*1 with M.2 Shield Frozr

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps.

Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
