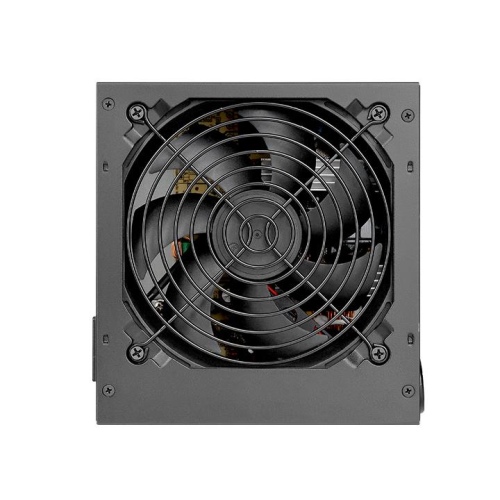

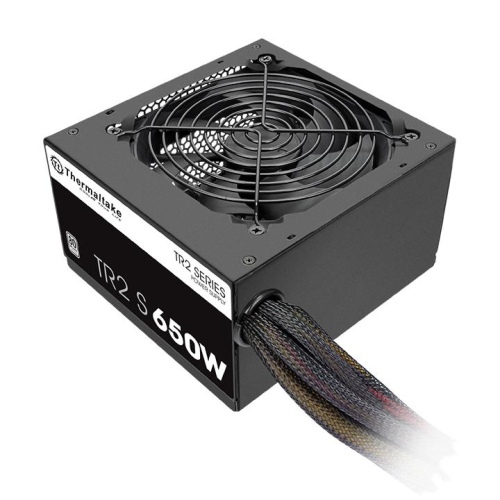

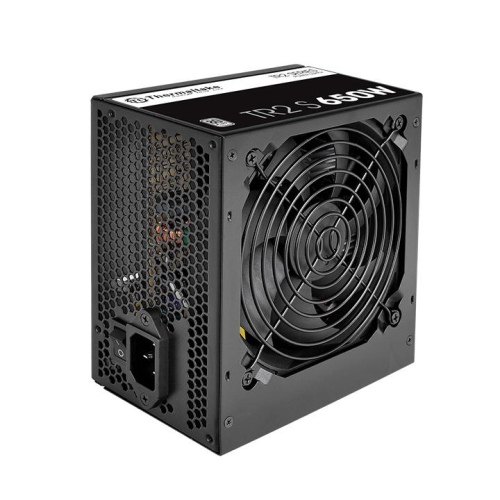

Ultra Quiet Fan
TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

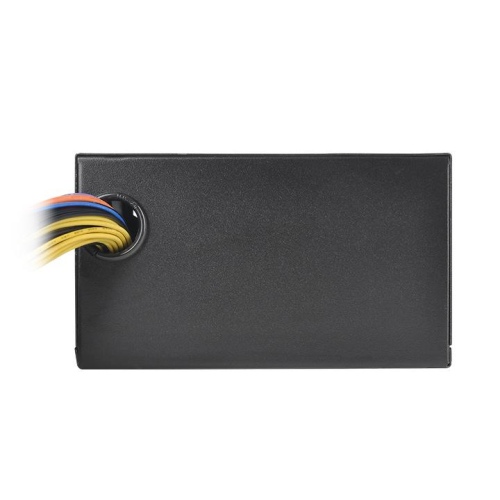

Multiple Connectors
The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage.

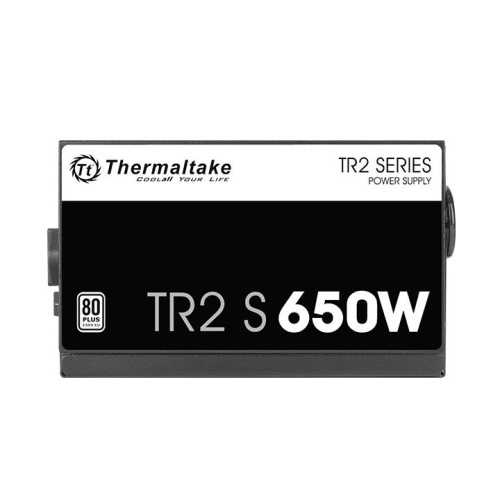

80 PLUS 230V Standard Certified and Kaby Lake-Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
82%, 85%, 82% efficiency at 20%, 50%, 100% Loading Guaranteed
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
| AC INPUT |
Input Voltage: 230V Input Current: 9A max Frequency: 50Hz-60Hz |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 23A | 17A | 48A | 0.5A | 2.5A |
| Max Output Power | 110W | 576W | 6W | 12.5W | |
| Total Power | 650W | ||||
