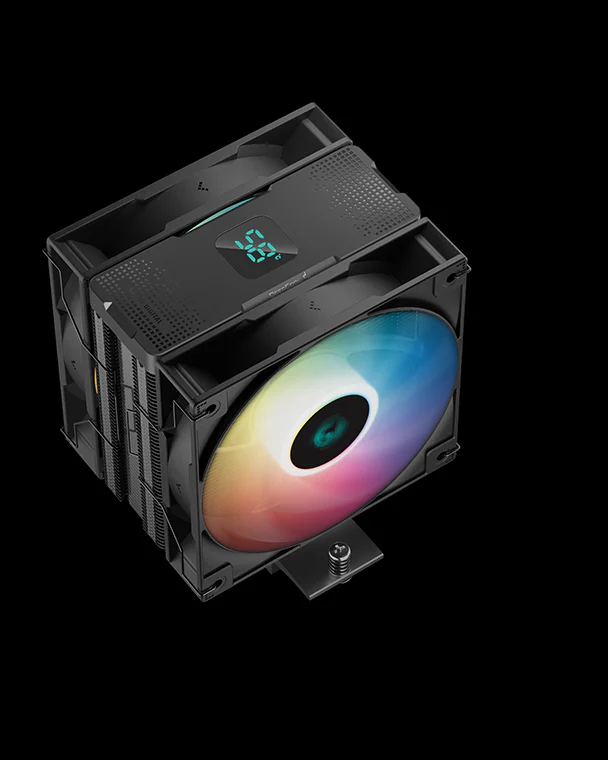

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the Celsius and usage of your system's CPU in real time, and with a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
℃
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
INSISTENCE OF COST PERFORMANCE

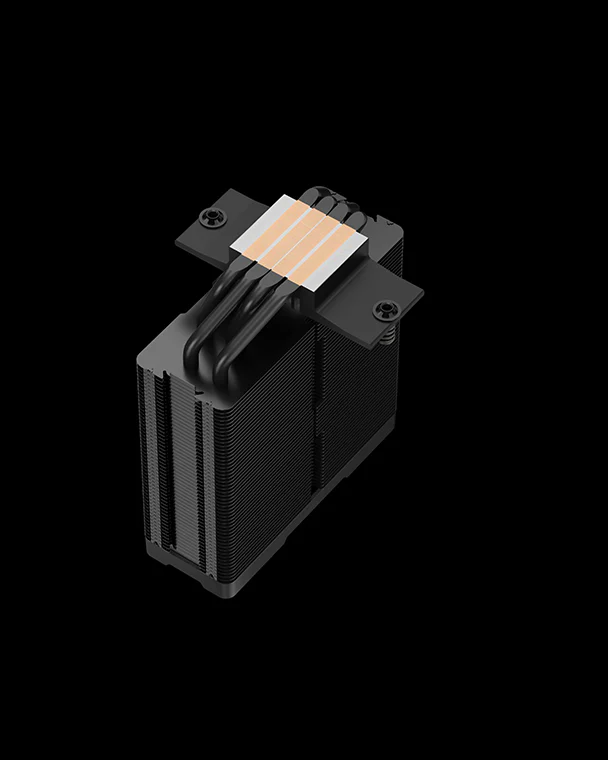

Built with the same premium quality materials, featuring four advanced copper heat pipes, a heatpipes direct touch coldplate, a dense of black coated matrix tower heat sink, and two silent hydro bearing fans, it produces a powerful winning formula for high-performance cooling and provides a digital feature for gamers.

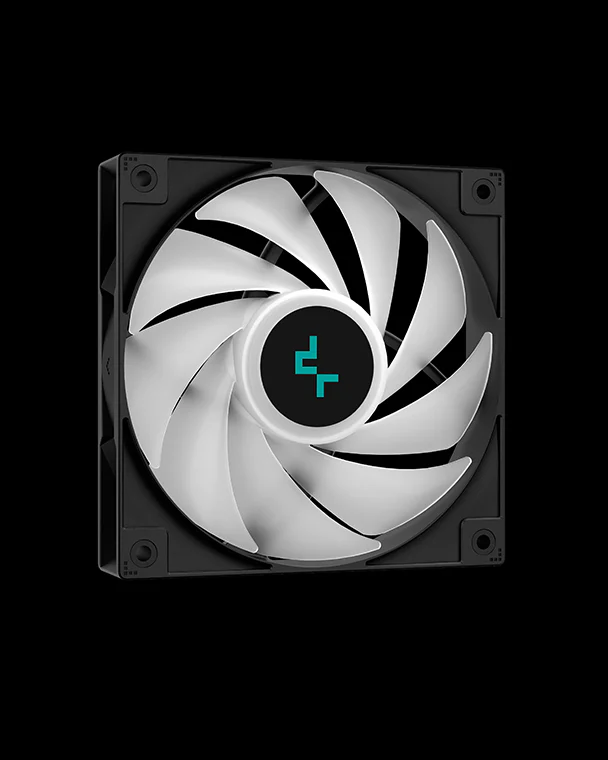

COOL, QUIET,
AND POWERFUL AND ARGB!
Two powerful ARGB PWM fans with superior Hydro bearings offer low noise operation without losing cooling output for a perfect balance.
≤31.6 dBA
500-2100 RPM
75.89 CFM

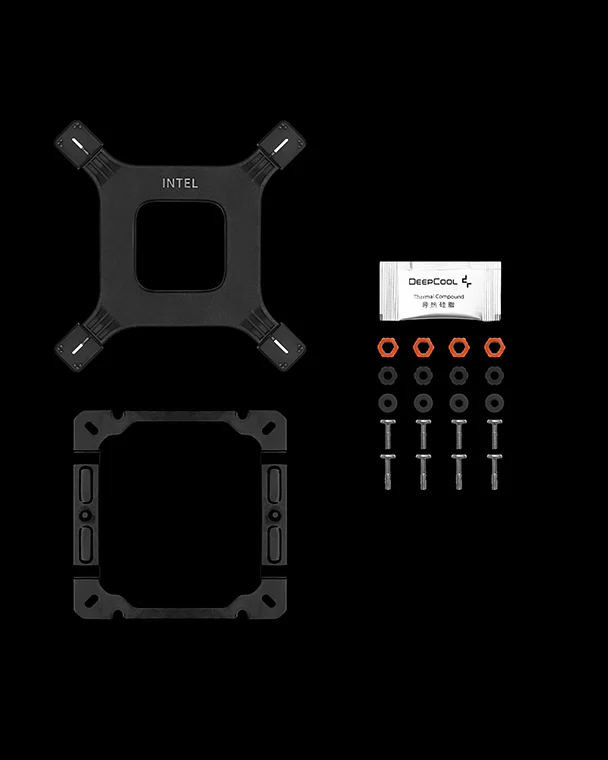

SIMPLE AND SECURE INSTALLATION
The all-metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Product Dimensions | 125×107.5×152.7 mm(L×W×H) |
| Heatsink Dimensions | 120×92×150 mm(L×W×H) |
| Net Weight | 773 g |
| Heatpipe | Ø6 mm×4 pcs |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~2100 RPM±10% |
| Fan Airflow | 75.89 CFM |
| Fan Air Pressure | 2.53 mmAq |
| Fan Noise | ≤31.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.17 A |
| Fan Power Consumption | 2.04 W |
| LED Type | Addressable RGB LED |
| LED Connector | 9-pin USB 2.0 and 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.6 W |
| EAN | 6933412728627 |
| P/N | R-AG400-BKADMP-G-1 |
