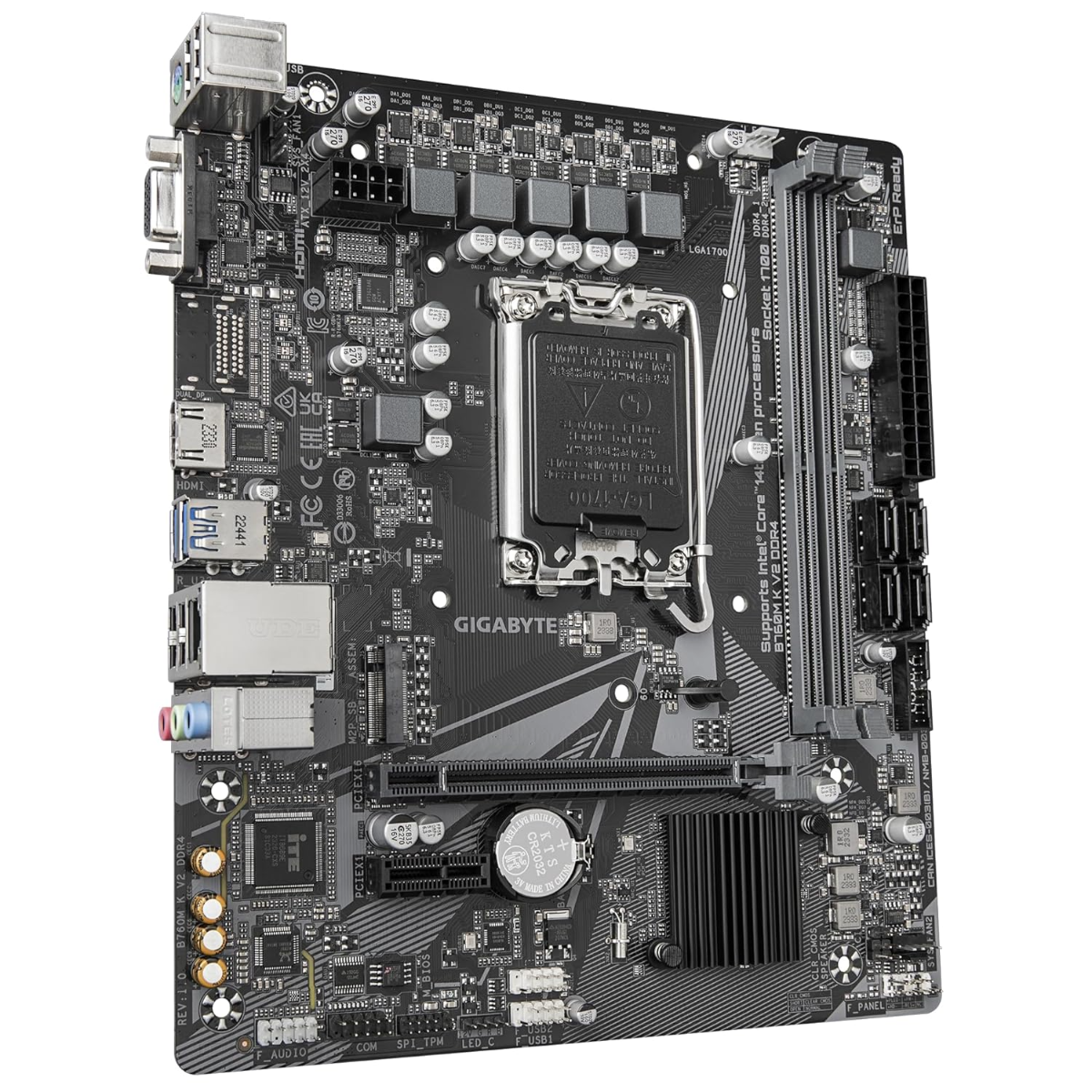

Supported Processors:

14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors

CPU Socket:

LGA1700

Chipset:

Intel B760 Express Chipset

L3 Cache:

Varies by CPU

Form Factor:

Micro ATX

Dimensions:

23.0 x 21.5 cm

Memory Type:

DDR4

Memory Slots:

2 x DDR4 DIMM

Maximum Memory:

64GB

Single DIMM Capacity:

32GB

Memory Architecture:

Dual Channel

Memory Speed Support:

DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s

XMP Support:

Yes

ECC Support:

ECC Un-buffered DIMM supported, operates in non-ECC mode

Non-ECC Support:

Non-ECC Un-buffered DIMM supported

Onboard Graphics:

Integrated Graphics Processor - Intel HD Graphics support

HDMI:

1 x HDMI port

Maximum Resolution:

4096 x 2160 @ 60Hz

HDMI Version:

HDMI 2.1

HDCP Support:

HDCP 2.3

Note:

Graphics specifications may vary depending on CPU support

Audio Codec:

Realtek Audio CODEC

Audio Type:

High Definition Audio

Audio Channels:

2 / 4 / 5.1 / 7.1-channel

S/PDIF Out Support:

Yes

LAN Chip:

Realtek GbE LAN

LAN Speed:

1Gbps / 100Mbps / 10Mbps

CPU PCIe Slot:

1 x PCI Express x16 slot, PCIe 4.0, running at x16

Chipset PCIe Slot:

1 x PCI Express x1 slot, PCIe 3.0, running at x1

Note:

The PCIEX16 slot can only support a graphics card or an NVMe SSD

M.2 CPU Connector:

1 x M.2 connector, Socket 3, M key, type 2280, PCIe 4.0 x4/x2 SSD support

M.2 Chipset Connector:

1 x M.2 connector, Socket 3, M key, type 2280, PCIe 4.0 x4/x2 SSD support

SATA Connectors:

4 x SATA 6Gb/s connectors

RAID Support:

RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices

USB 3.2 Gen 1:

6 ports total: 4 back panel, 2 through internal USB header

USB 2.0/1.1:

6 ports total: 2 back panel, 4 through internal USB headers

Power Connectors:

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector

Fan Headers:

1 x CPU fan header, 2 x system fan headers

RGB Header:

1 x RGB LED strip header

M.2 Connectors:

2 x M.2 Socket 3 connectors

SATA Connectors:

4 x SATA 6Gb/s connectors

Front Panel Header:

1 x front panel header

Front Audio Header:

1 x front panel audio header

S/PDIF Header:

1 x S/PDIF Out header

USB Headers:

1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers

TPM Header:

1 x Trusted Platform Module header

Serial Port Header:

1 x serial port header

Clear CMOS:

1 x Clear CMOS jumper

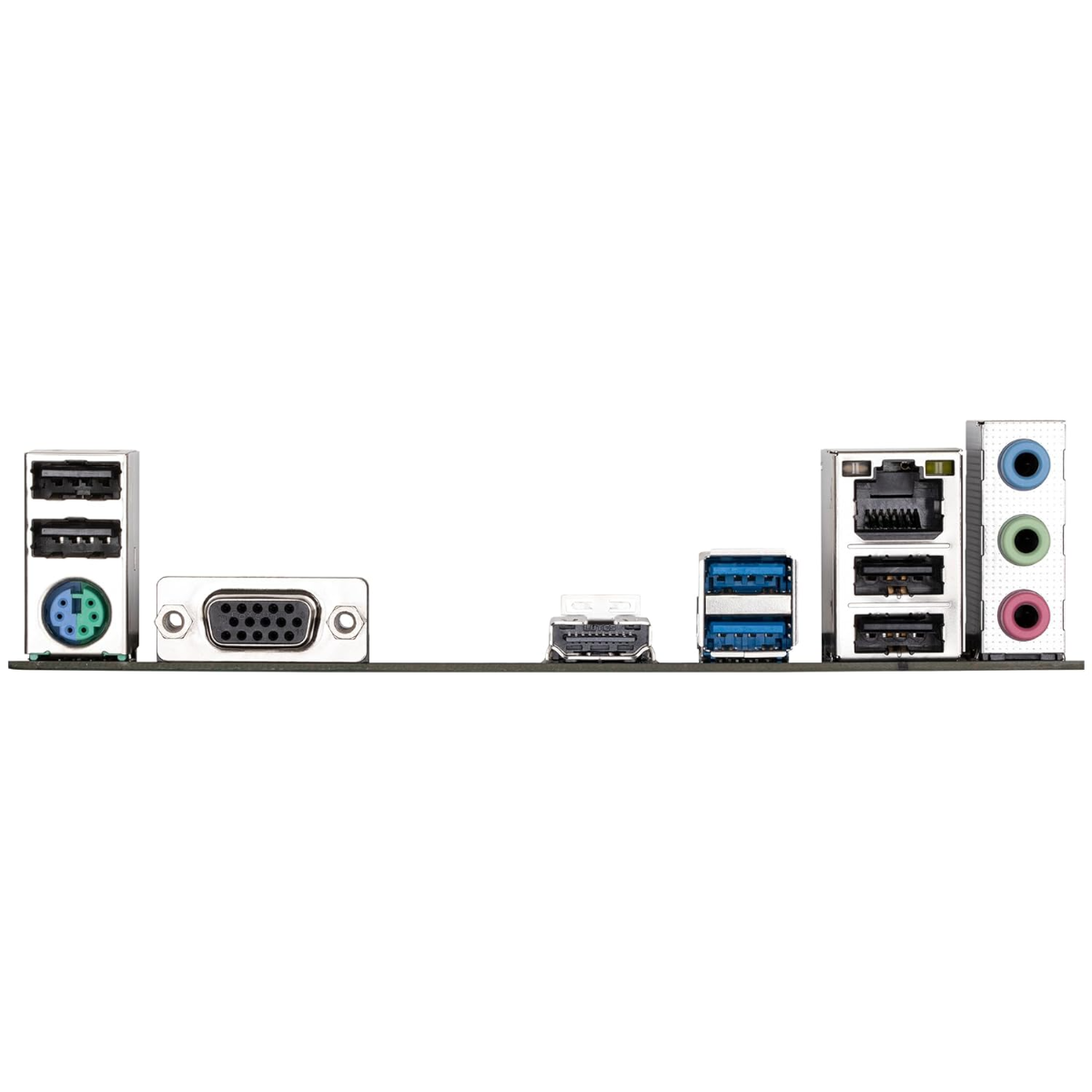

USB 2.0/1.1:

2 x USB 2.0/1.1 ports

HDMI:

1 x HDMI port

USB 3.2 Gen 1:

4 x USB 3.2 Gen 1 ports

LAN:

1 x RJ-45 port

Audio:

3 x audio jacks

Controller Chip:

iTE I/O Controller Chip

Voltage Detection:

Yes

Temperature Detection:

Yes

Fan Speed Detection:

Yes

Water Cooling Flow Rate Detection:

Yes

Fan Fail Warning:

Yes

Fan Speed Control:

Yes

BIOS Flash:

1 x 128 Mbit flash

BIOS Type:

Licensed AMI UEFI BIOS

Standards:

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

GIGABYTE Control Center:

Supported

Q-Flash:

Supported

Security Software:

Norton Internet Security OEM version

LAN Software:

LAN bandwidth management software

Windows 11:

64-bit

Windows 10:

64-bit
