Supports AMD Ryzen 7000 Processors

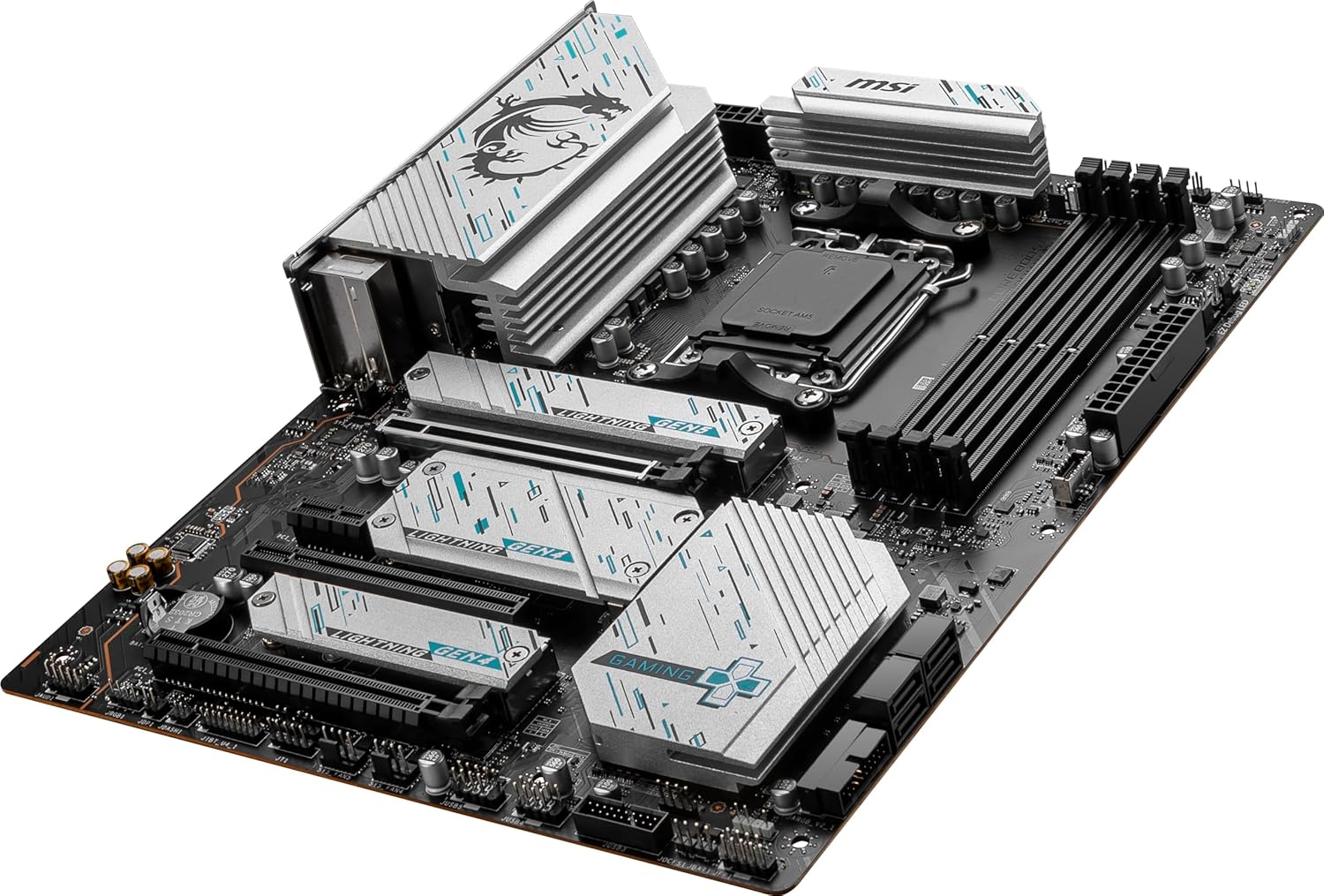

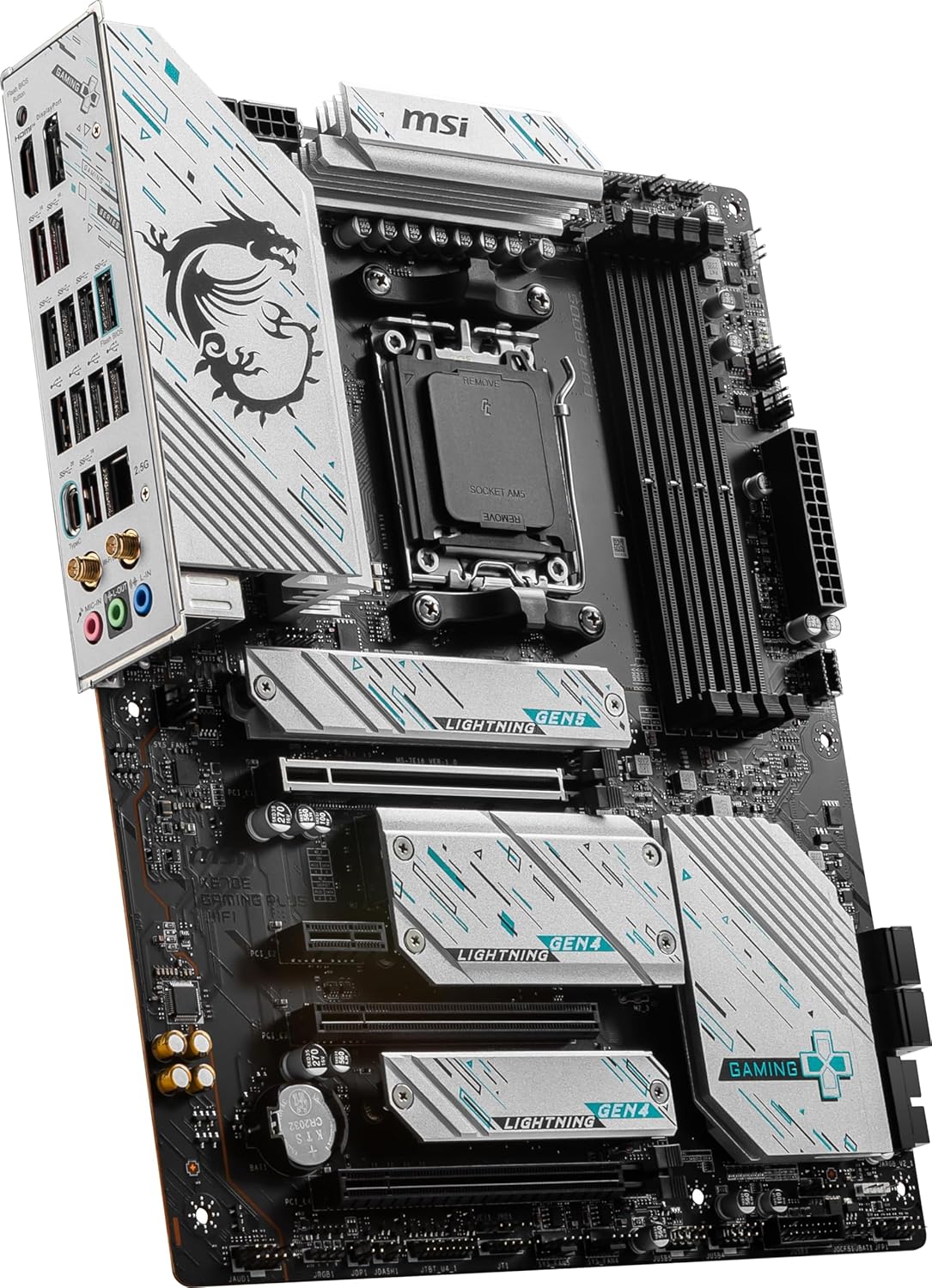

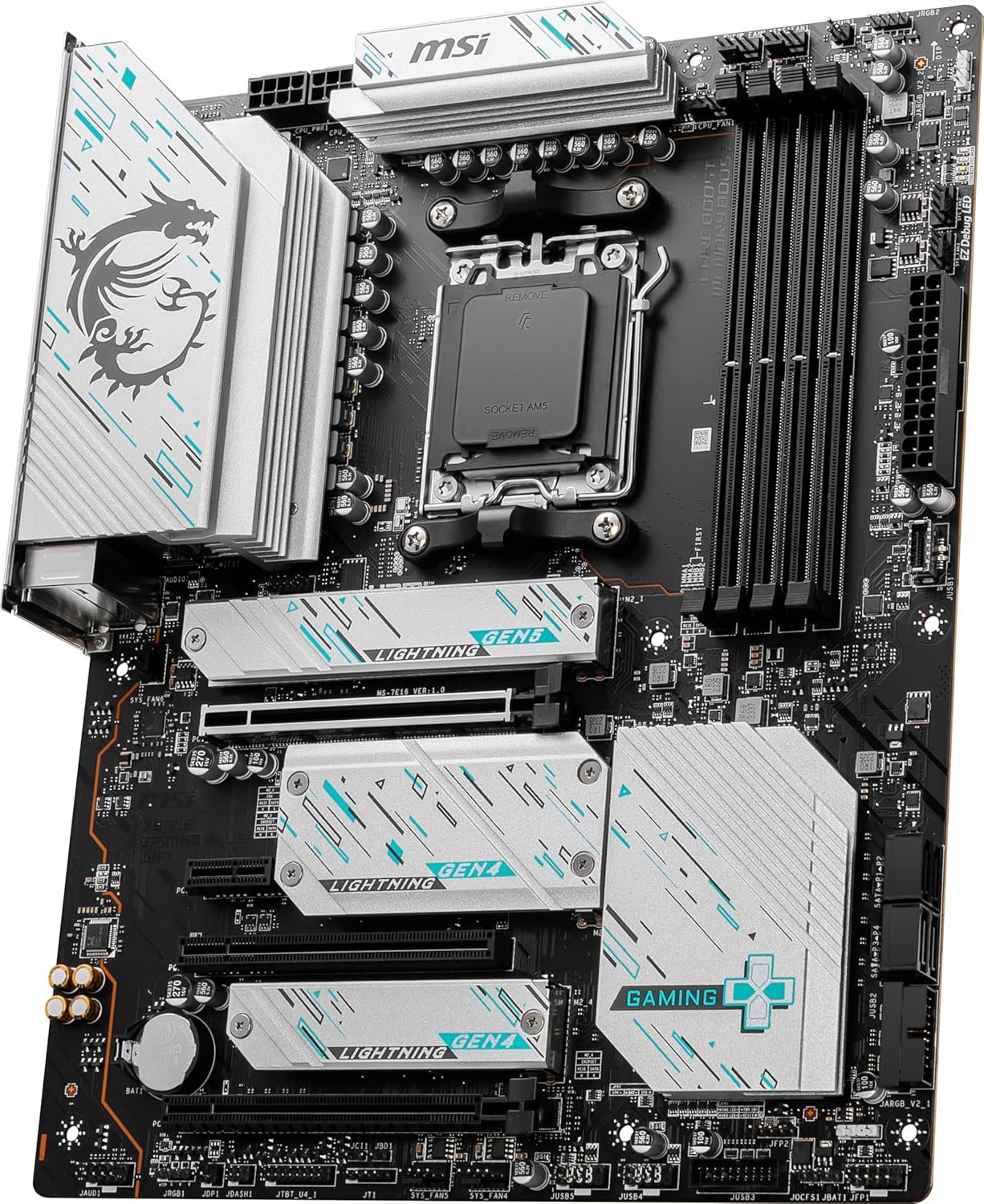

The X670E GAMING PLUS WIFI motherboard supports AMD Ryzen 7000 processors.

Form Factor: ATX

Socket Type: AM5

Chipset: AMD X670

14+2+1 Duet Rail Power System with 80A Smart Power Stage

With its dual 8 pin power connectors and exclusive Core Boost technology, the X670E GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

1. Digital PWM IC
2. 14-Phase Duet-Rail Power (SPS / 80A)
3. 2-Phase SOC Power
4. 1-Phase MISC Power

Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

1 x PCIe 5.0 x16 slot* (Primary with Steel Armor)

1 x PCIe 3.0 x16 slot

1 x PCIe 4.0x16 slot

1 x PCIe 3.0 x1 slot

*Supports x16/x1/x4

4 x DDR5 Dual Channel (7800+ MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7800 MHz, supports AMD EXPO.

Gen5 M.2 Connectors

The X670E GAMING PLUS WIFI motherboard features MSI's latest M.2 slots:

1 x Gen5 x4 128Gb/s slot*

3 x Gen4 x4 64Gb/s slots*

*with M.2 Shield Frozr

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

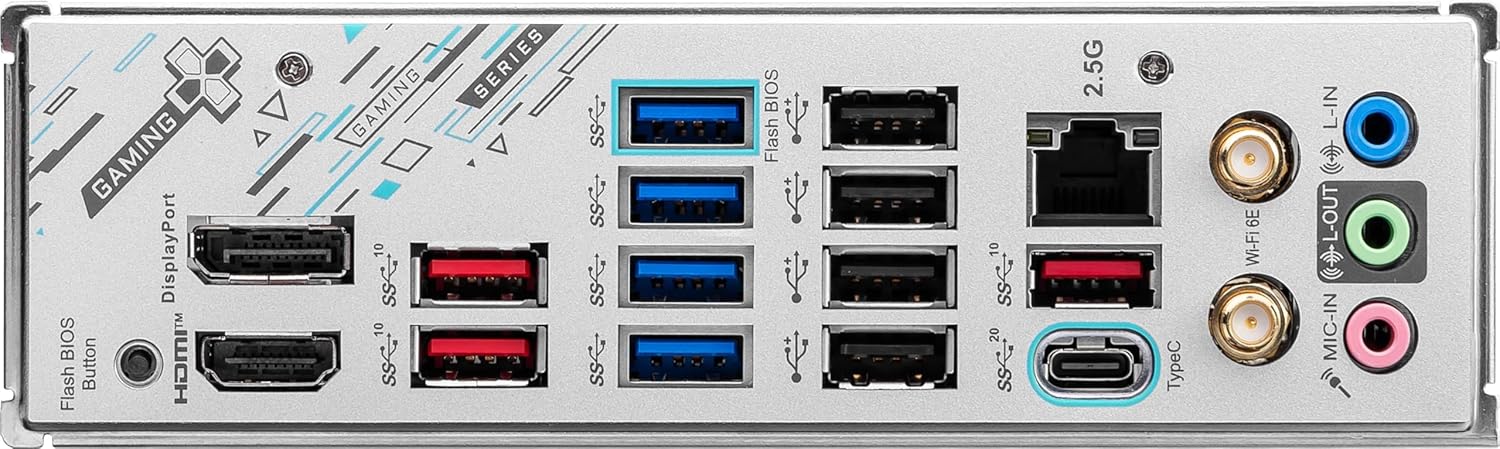

Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 8-Channel (7.1) HD Audio with Audio Boost
