Z790M-PLUS
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
10 + 1 Power Stages (50A) with Enlarged Heatsinks
Gen 5 Slot for Graphics Card
AEMP II for Ultimate DDR5 Performance

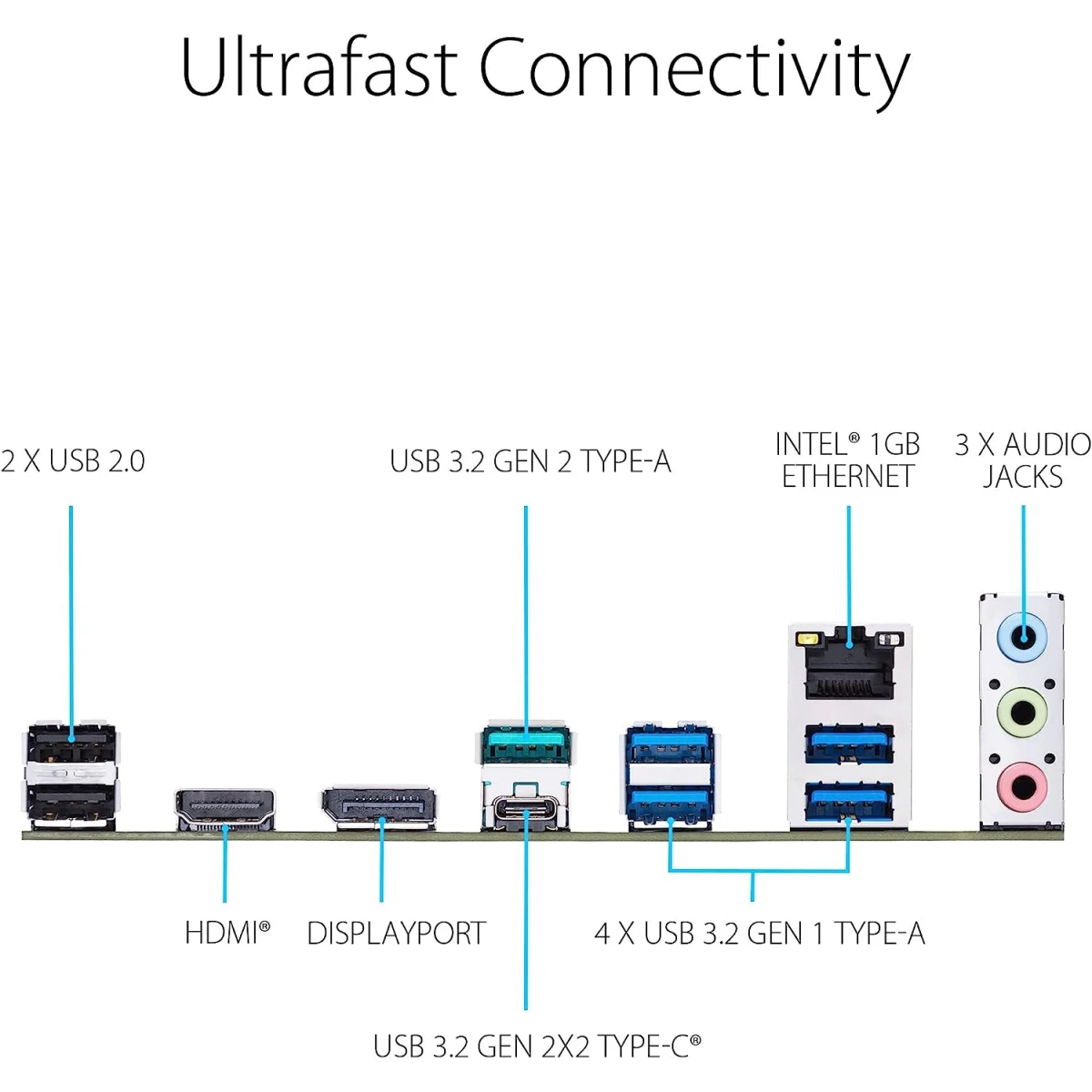

USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support
1.0 Gb Ethernet
Intelligent Control
Al Cooling II
Customization
Performance

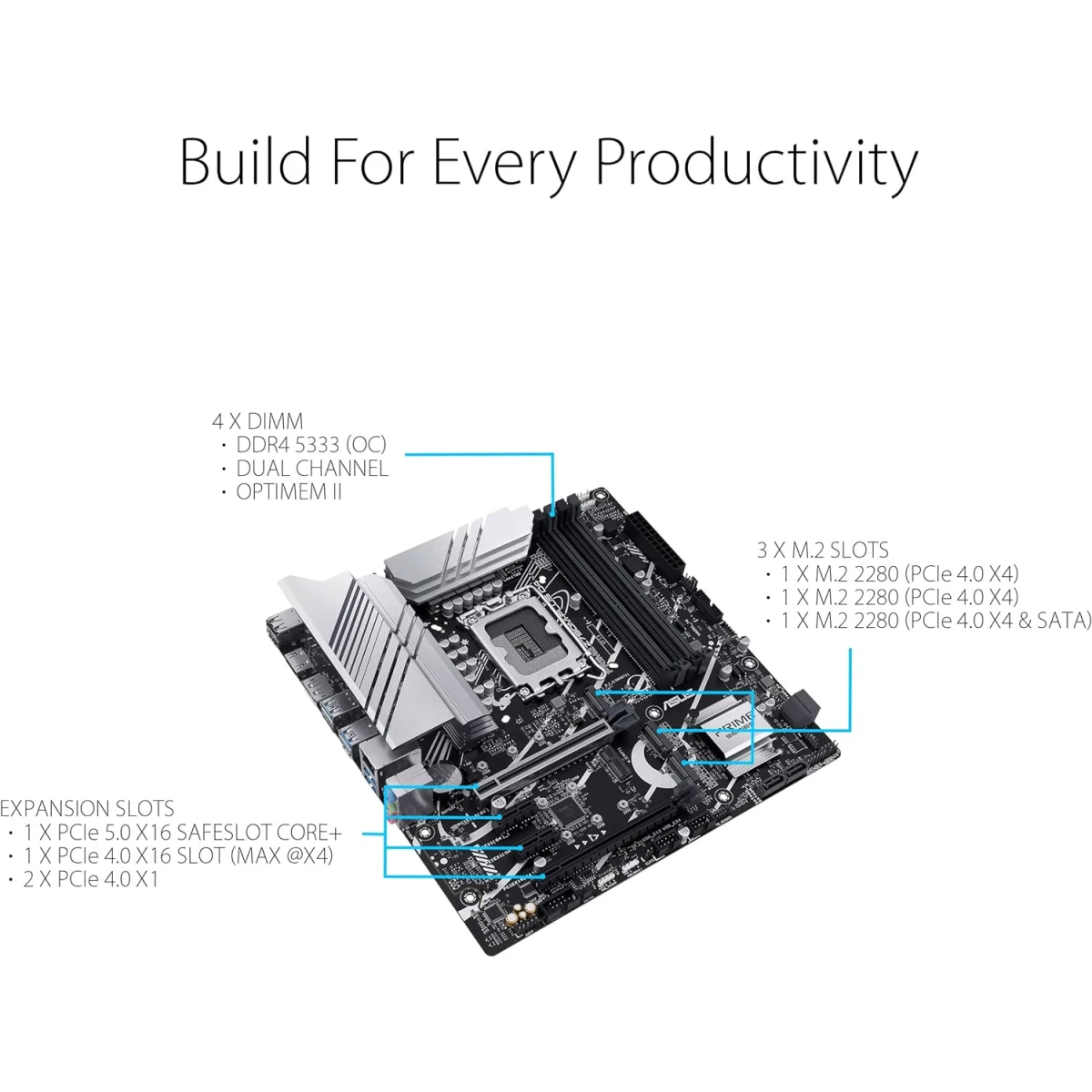

- Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors &
12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors - Expansion Slots
- 1 x PCIe® 5.0 x16 SafeSlot Core+
- 1 x PCIe® 4.0 x16
- 2 x PCIe® 4.0 x1
- 10+1 DrMOS
- 4 x DIMM
- DDR5 7200+(OC)
- Dual Channel
- AEMP II
- OptiMem II
- 3 x M.2 Slots
- 1 x M.2 2280 (PCIe® 4.0 x4 mode)
- 1 x M.2 2280 (PCIe® 4.0 x4 mode)
- 1 x M.2 2280 (PCIe® 4.0 x4 & SATA modes)
Cooling
- CPU Fan Headers
- VRM Heatsinks
- CHA Fan Header
- AIO Pump Header
- CHA Fan Header
- Chipset Heatsink
- CHA Fan Header

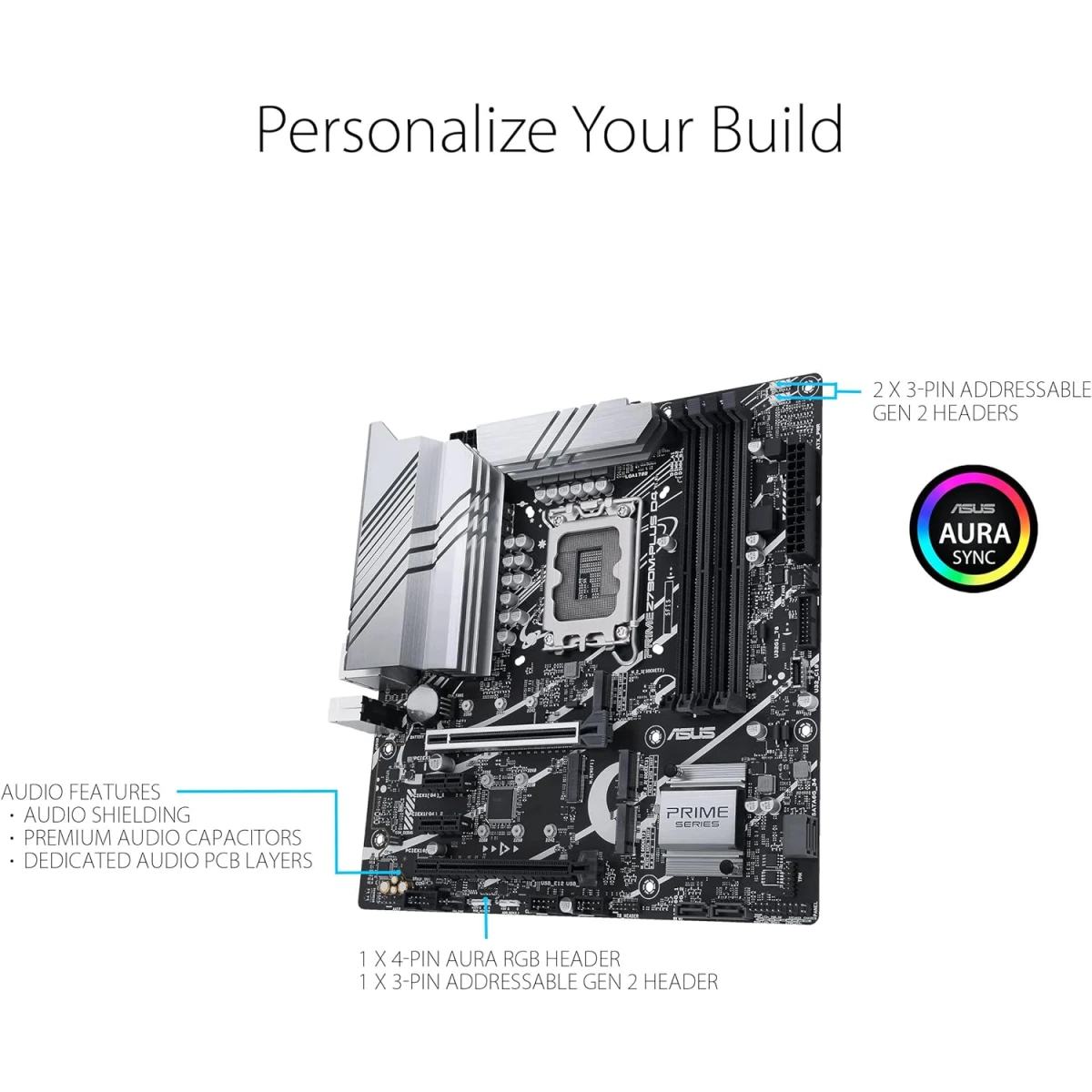

Personalization
- 2 x Addressable Gen 2 Headers
- 1 x Aura RGB Header
- 1 x Addressable Gen 2 Header
