Sold out

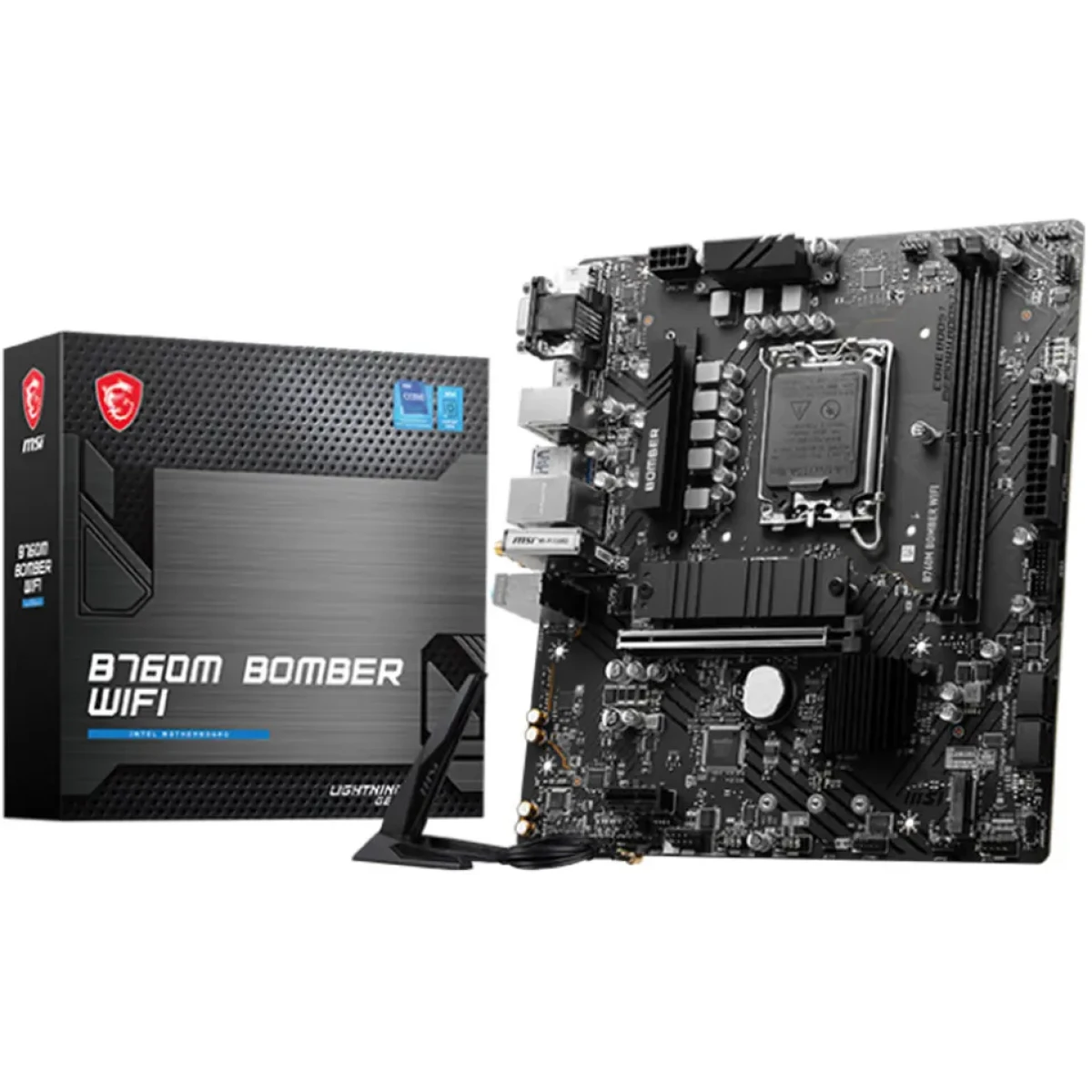

MSI B760M BOMBER WIFI DDR5 Intel 14th/13th Gen Motherboard PCIe 4.0 DDR5 2xM.2 Gen4 x4 PCIe 4.0 Mainboard - Image 1

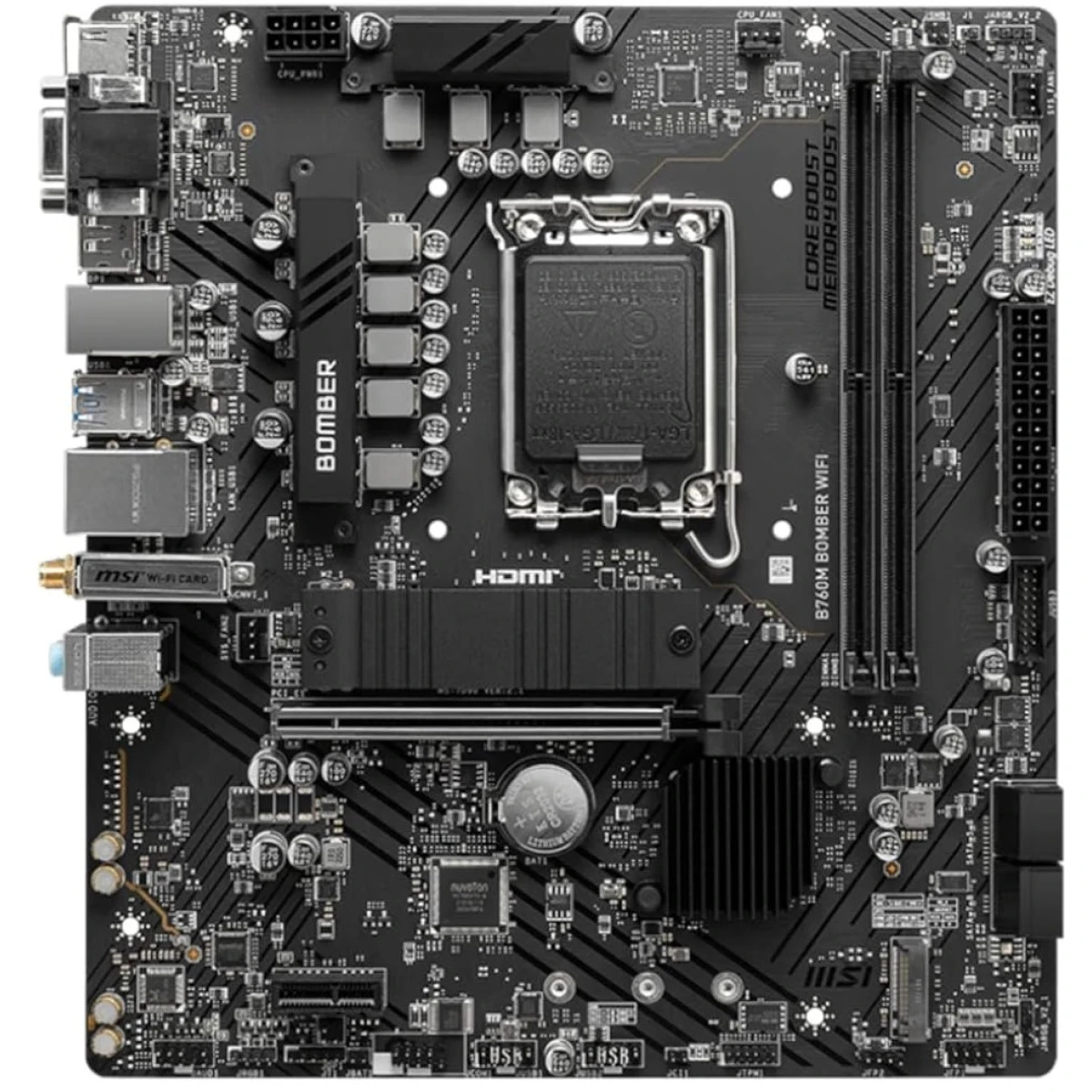

MSI B760M BOMBER WIFI DDR5 Intel 14th/13th Gen Motherboard PCIe 4.0 DDR5 2xM.2 Gen4 x4 PCIe 4.0 Mainboard - Image 2

Click to enlarge

MSI B760M BOMBER WIFI DDR5 Intel 14th/13th Gen Motherboard PCIe 4.0 DDR5 2xM.2 Gen4 x4 PCIe 4.0 Mainboard

Name: MSI B760M BOMBER WIFI DDR5 Intel 14th/13th Gen Motherboard PCIe 4.0 DDR5 2xM.2 Gen4 x4 PCIe 4.0 Mainboard
SKU: B760M BOMBER WIFI
Availability: OutOfStock

SKU: B760M BOMBER WIFI

115.00 JOD

Out of stock

Fast Shipping

Via Careem Box

Client Support

Gladly Help You

Premium Quality

Satisfaction Guaranteed

2-day Delivery

Track or off orders

12 People watching this product now!

Description

Supports 12th/13th/14th Gen Intel Core, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability, and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection
AUDIO BOOST: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength

Motherboard Specifications
CPU Support	13 & 14th Generation Intel CPU
CPU Socket Type	LGA 1700
Chipset	INTEL B760
Form Factor	ATX
Memory Type	DDR5
Memory Speed	6400 MHz
Maximum Memory	96 GB
Memory Slots	2 Slots
M.2 Slots	Yes
Wireless LAN	Yes
Warranty
Warranty	1 years

Model	B760M BOMBER WIFI
Chipset	INTEL B760
CPU SUPPORT	Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 96GB MemoryDDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5600+ MHz
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
EXPANSION SLOT	1x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Storage	2x M.2 (Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
USB	2x USB 2.0 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type A
LAN	Realtek RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA
Audio	Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A
LED FEATURE	4x EZ Debug LED

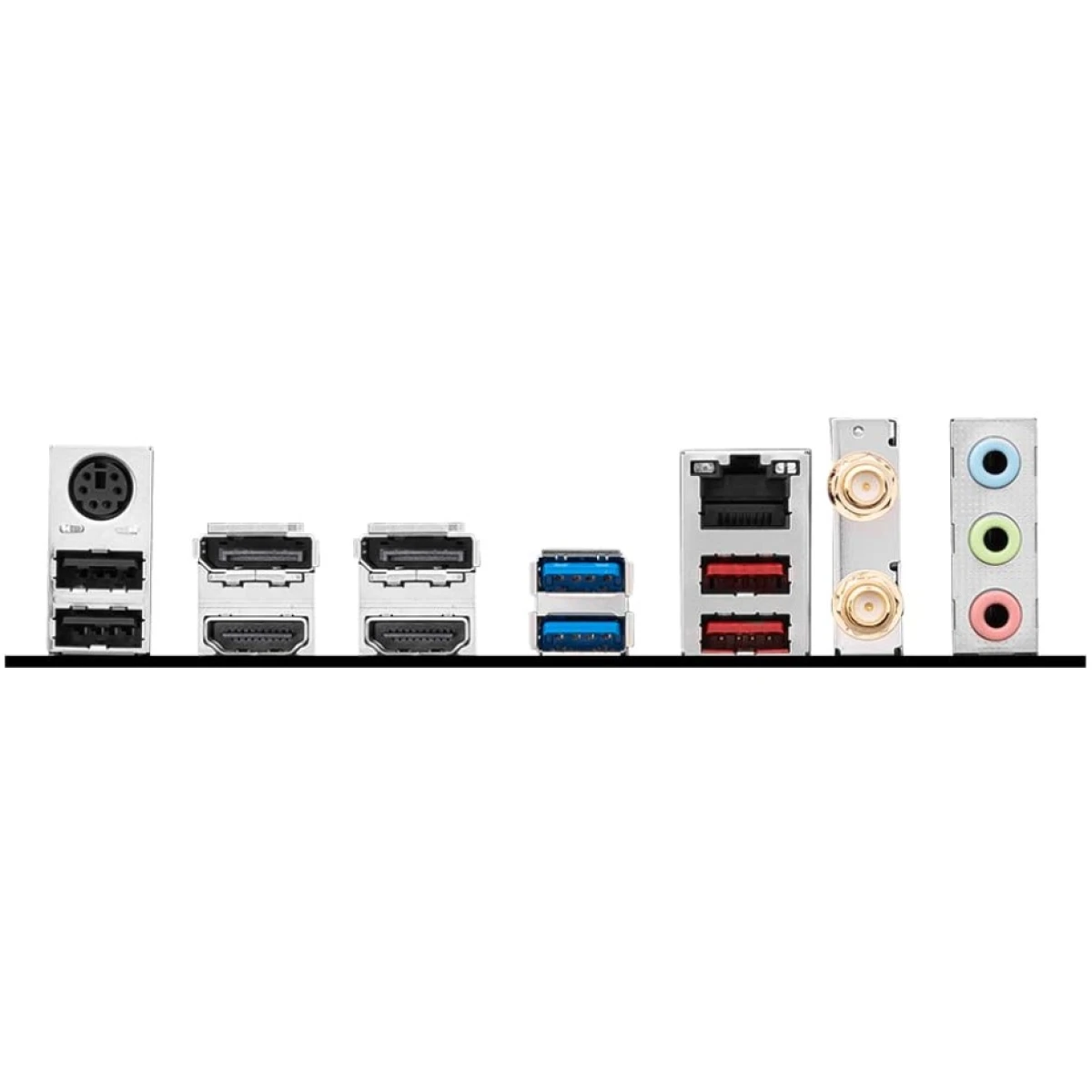

BACK PANEL PORTS	HDMI™ VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L)	mATX 220mmx243.84mm
