ASUS TUF GAMING B760-PLUS WIFI DDR5 Intel B760 LGA 1700 ATX PCIe 5.0 3x PCIe 4.0 M.2 2.5Gb Ethernet USB 3.2 Gen 2x2 Type-C

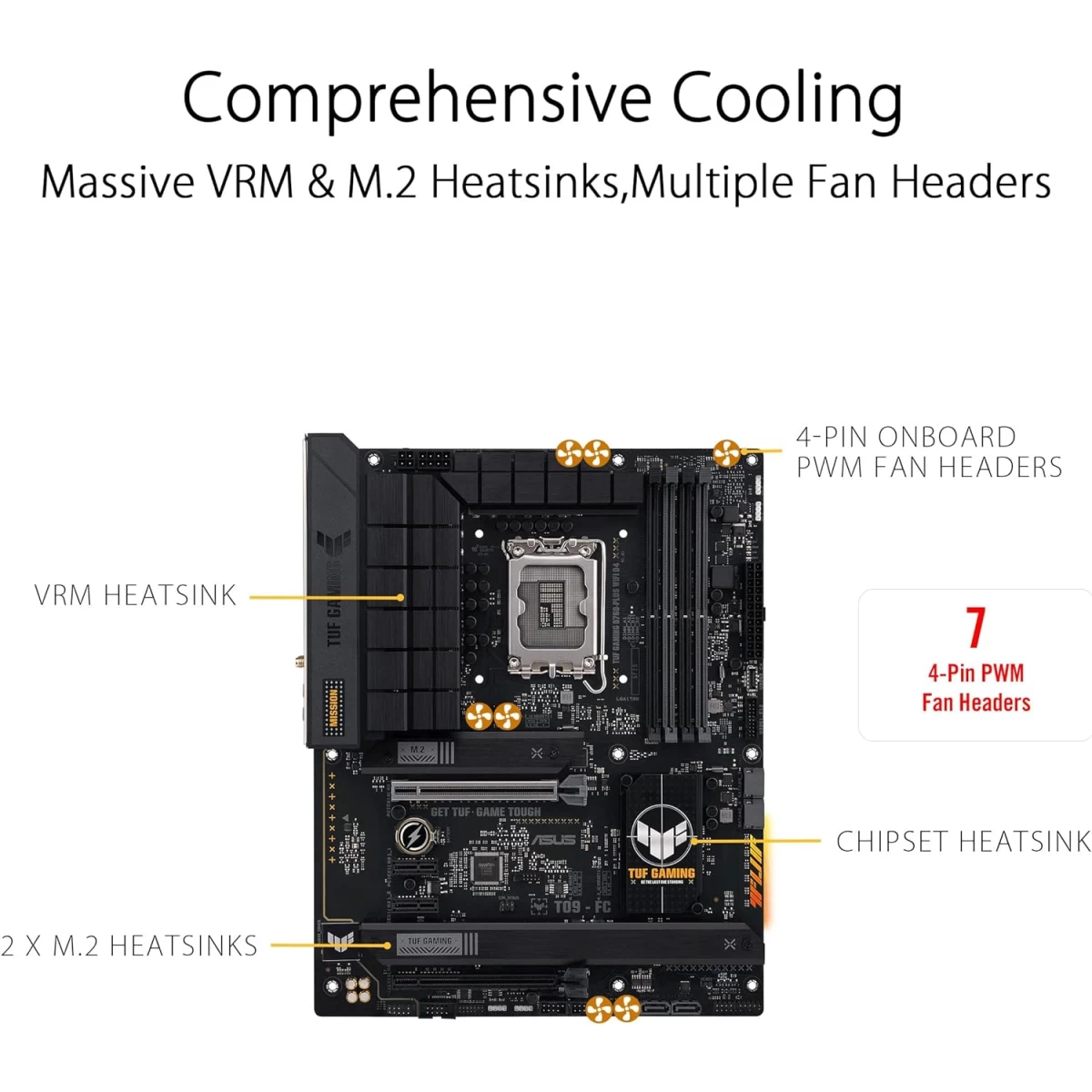

12+1 DrMOS power stages with enlarged VRM heatsinks

PCIe® 5.0 for graphics cards

DDR5 memory module support

USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header

2.5 Gb Ethernet

Wi-Fi 6

Two-Way AI Noise-Cancelation

SPEC OVERVIEW

1. HDMI
2. DisplayPort™
3. 1 x USB 3.2 Gen 1
4. 1 x USB 2.0
5. 1 x USB 3.2 Gen 2
6. 1 x USB 3.2 Gen 2x2 Type-C®
7. Realtek 2.5 G Ethernet
8. 2 x USB 3.2 Gen 1
9. Wi-Fi 6
10. 7.1-ch Audio
11. Expansion Slots
    • 1 x PCIe® 5.0 x16 SafeSlot Core+
    • 1 x PCIe® 3.0 x16 Slot (max @x4)
    • 2 x PCIe® 3.0 x1

12. Realtek 7.1-ch Audio CODEC
    Exclusive DTS Audio Processing
    • TUF Gaming Audio Cover
    • Audio Shielding
    • Dedicated Audio PCB Layers
    • Premium Audio Capacitors
13. ProCool Connectors
14. 3 x Addressable Gen 2 RGB headers
    1 x RGB strip header

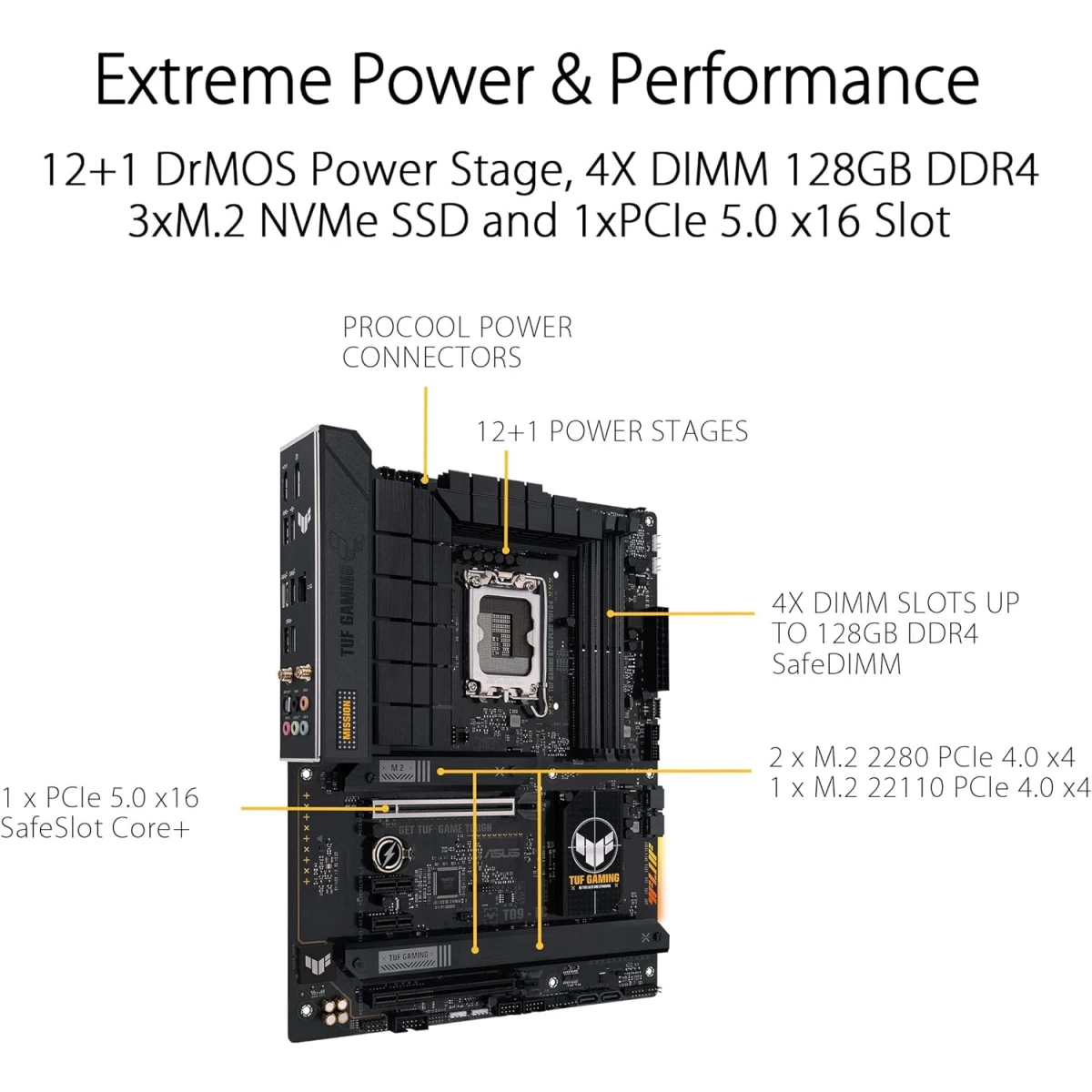

15. 12+1 DrMOS
16. 4 x DIMM
    • Dual Channel
    • OptiMem II

17. Intel® Socket LGA1700 for 13th Gen
    Intel® Core™ Processors
18. 1 x Front USB 3.2 Gen 2 Type-C® Port
19. 1 x Front USB 3.2 Gen 1 Header
20. 4 x SATA 6 Gb/s ports
21. Intel® B760 chipset
22. 2 x M.2 2280 PCIe® 4.0 x 4
    1 x M.2 22110 PCIe® 4.0 x 4

23. 2 x Front USB 2.0 Headers
