- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection
- AUDIO BOOST: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength
| Motherboard Specifications | |
|---|---|
| CPU Support | 13 & 14th Generation Intel CPU |
| CPU Socket Type | LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Speed | 6400 MHz |
| Maximum Memory | 96 GB |
| Memory Slots | 2 Slots |
| M.2 Slots | Yes |
| Wireless LAN | Yes |
| Warranty | |
| Warranty | 1 years |
|

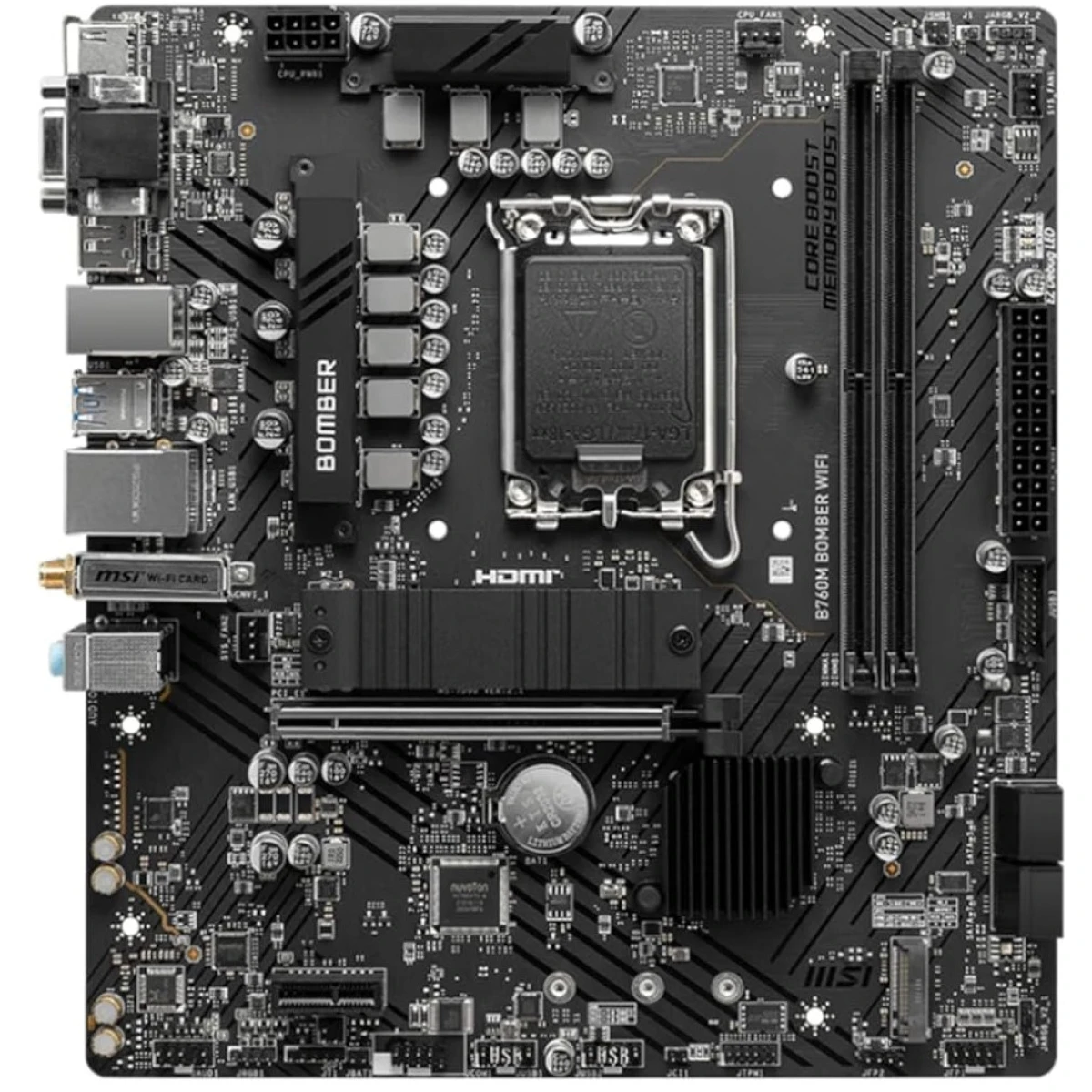

Model |
B760M
BOMBER WIFI |
|
Chipset |
INTEL
B760 |
|
CPU
SUPPORT |
Supports
12th/13th/14th Gen Intel Core Processors, Pentium Gold, and Celeron
Processors LGA 1700 |
|
Memory |
2x
DDR5, Maximum Memory Capacity 96GB MemoryDDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
|
|
Onboard
Graphics |
1x
HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz 1x
DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz 1x D-Sub
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200
60Hz |
|
EXPANSION
SLOT |
1x
PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2
Gen PCIe 4.0 supports up to (From Chipset) |
|
Storage |
2x M.2
(Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242
devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports
2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when
installing M.2 SATA SSD in the M2_2 slot. |
|
RAID |
Supports
RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
|
USB |
2x USB
2.0 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type A |
|
LAN |
Realtek
RTL8125B 2.5Gbps LAN |
|
WIRELESS
/ BLUETOOTH |
Intel
Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports
802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA |
|
Audio |
Realtek
ALC897 Codec 7.1-Channel High-Definition Audio |
|
Internal
I/O |
|
|
LED
FEATURE |
4x EZ
Debug LED |
|
BACK
PANEL PORTS |
|
|
OPERATING
SYSTEM |
Support
for Windows 11 64-bit, Windows 10 64-bit |
|
PCB
Dimension (W × L) |
mATX
220mmx243.84mm |
